ADG706BRUZ-REEL
Manufacturer:
Analog Devices
Mfr.Part #:
ADG706BRUZ-REEL
Datasheet:
Description:

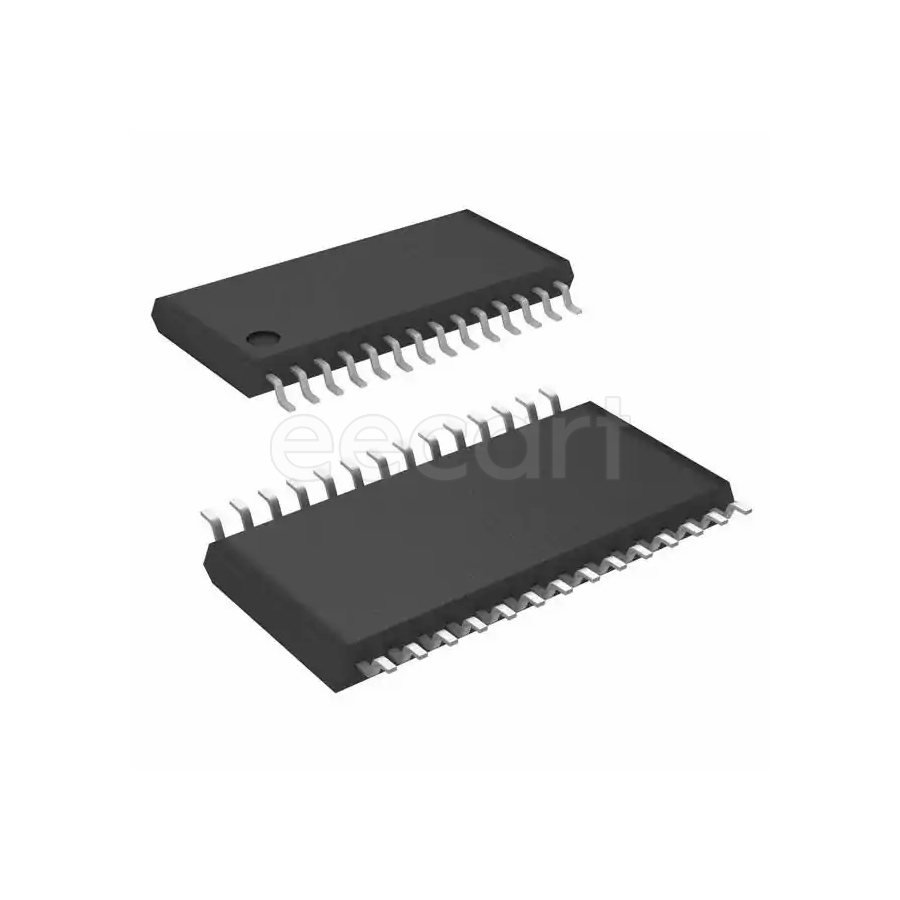

Multiplexer Switch ICs TSSOP-28 SMD/SMT Number of Channels:16 4.5 Ω 32 ns 16 ns
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 28 |
| Resistance | 4.5 Ω |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Interface | Parallel |
| Number of Circuits | 1 |
| Bandwidth | 25 MHz |
| Operating Supply Voltage | 5 V |
| Max Power Dissipation | 5 µW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Power Dissipation | 5 µW |
| Number of Channels | 16 |
| Turn-Off Delay Time | 16 ns |
| Operating Supply Current | 1 nA |
| -3db Bandwidth | 25 MHz |
| High Level Output Current | 30 mA |
| Logic Function | Multiplexer |
| Number of Inputs | 16 |
| Supply Type | Dual, Single |
| Number of Outputs | 1 |
| Dual Supply Voltage | 2.5 V |
| Schedule B | 8542390000 |
| Configuration | 1 x 16:1 |
| Turn-On Delay Time | 32 ns |
| Min Dual Supply Voltage | -2.25 V, 2.25 V |
| Max Dual Supply Voltage | -2.75 V, 2.75 V |
| On Resistance (RON) | 4.5 Ω |
Stock: 1423
Distributors
pcbx
pcbxUnit Price$6.45283
Ext.Price$6.45283
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.45283 | $6.45283 |
| 10 | $4.38042 | $43.80420 |
| 25 | $3.84013 | $96.00325 |
| 50 | $3.52157 | $176.07850 |
| 100 | $3.22941 | $322.94100 |
| 300 | $3.13450 | $940.35000 |
| 500 | $3.04238 | $1521.19000 |
| 1000 | $2.95298 | $2952.98000 |
